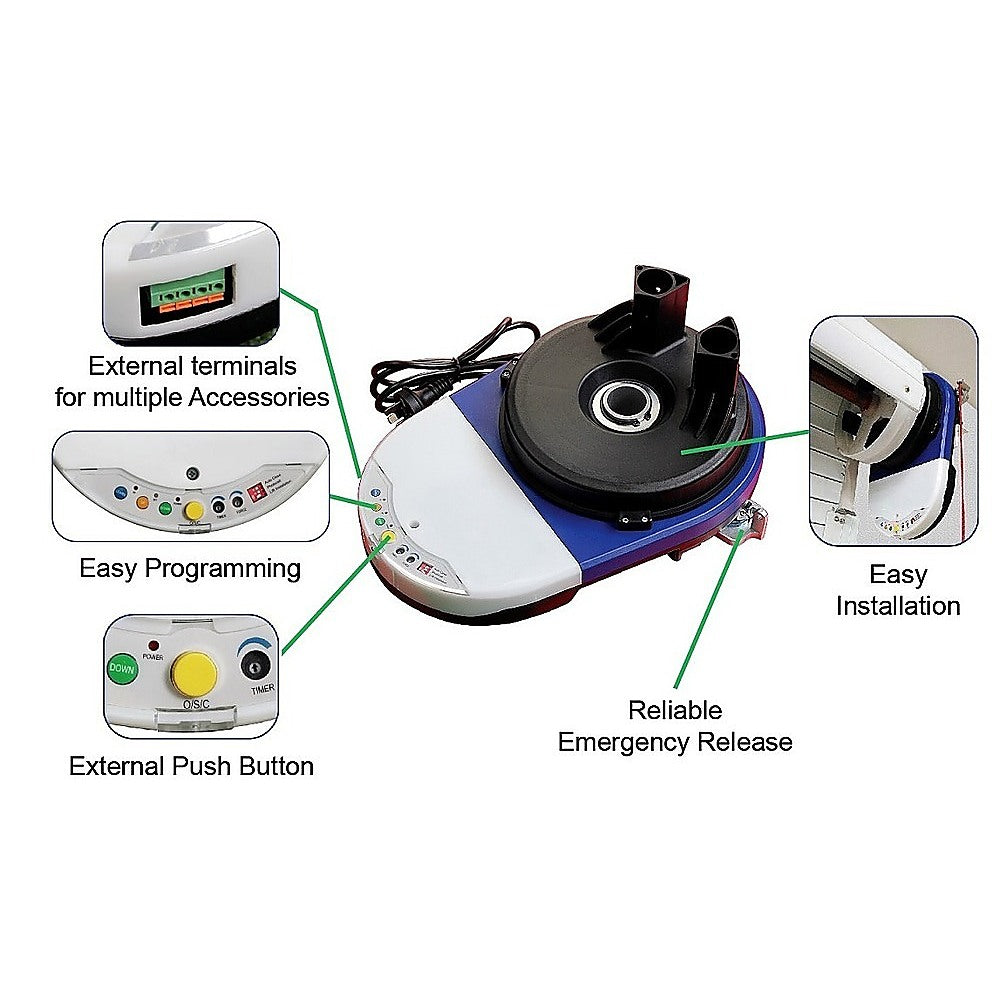

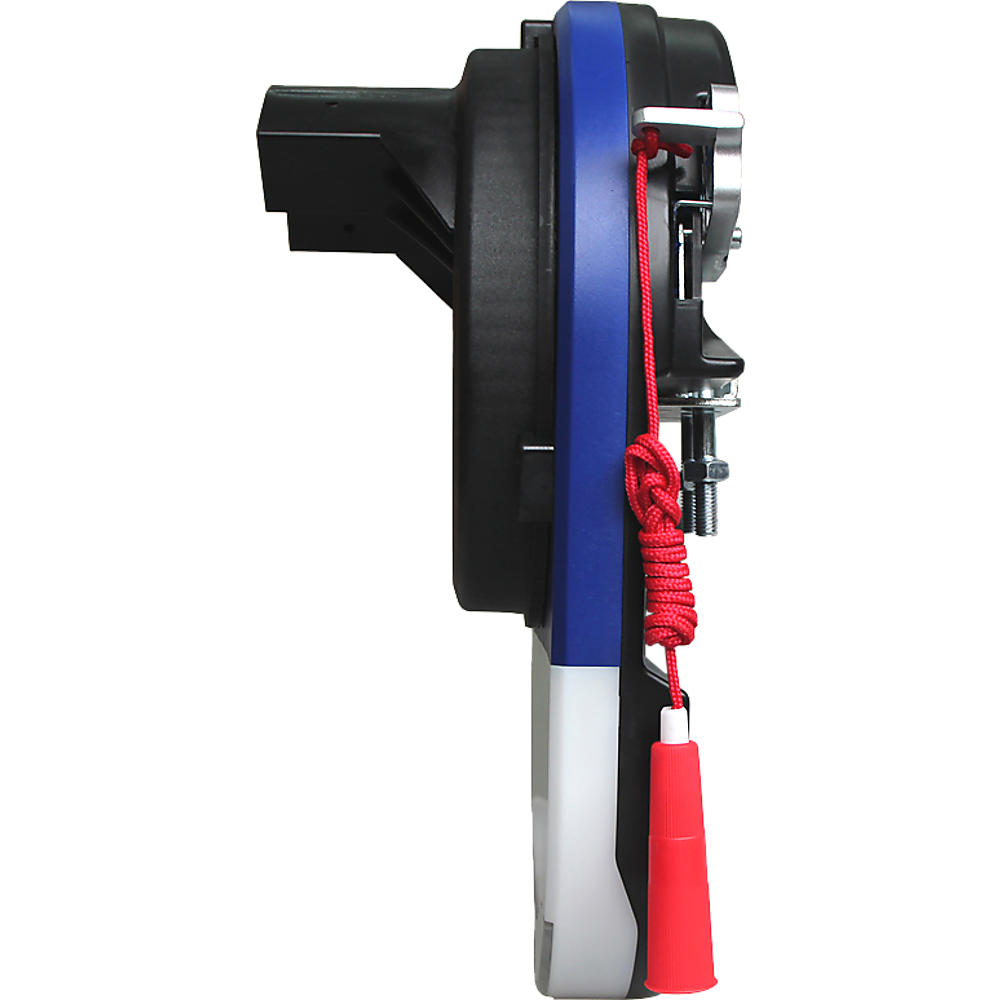

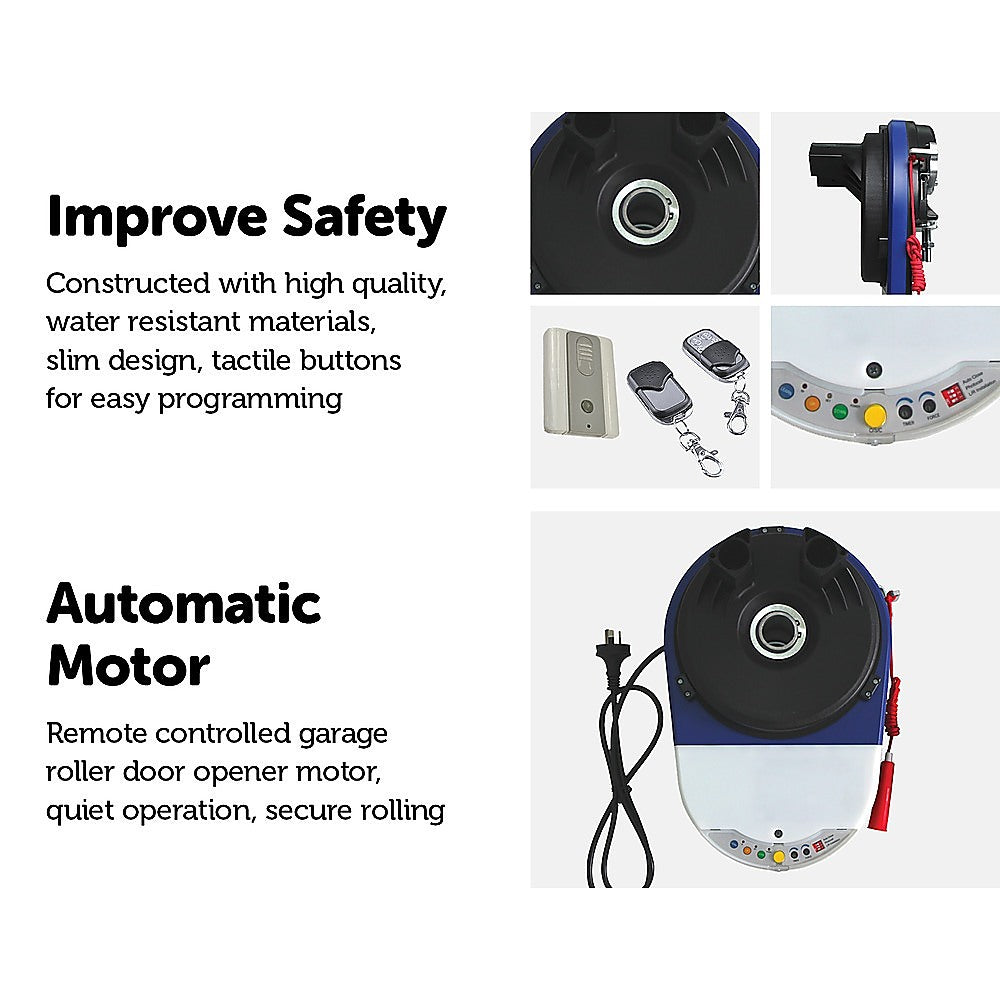

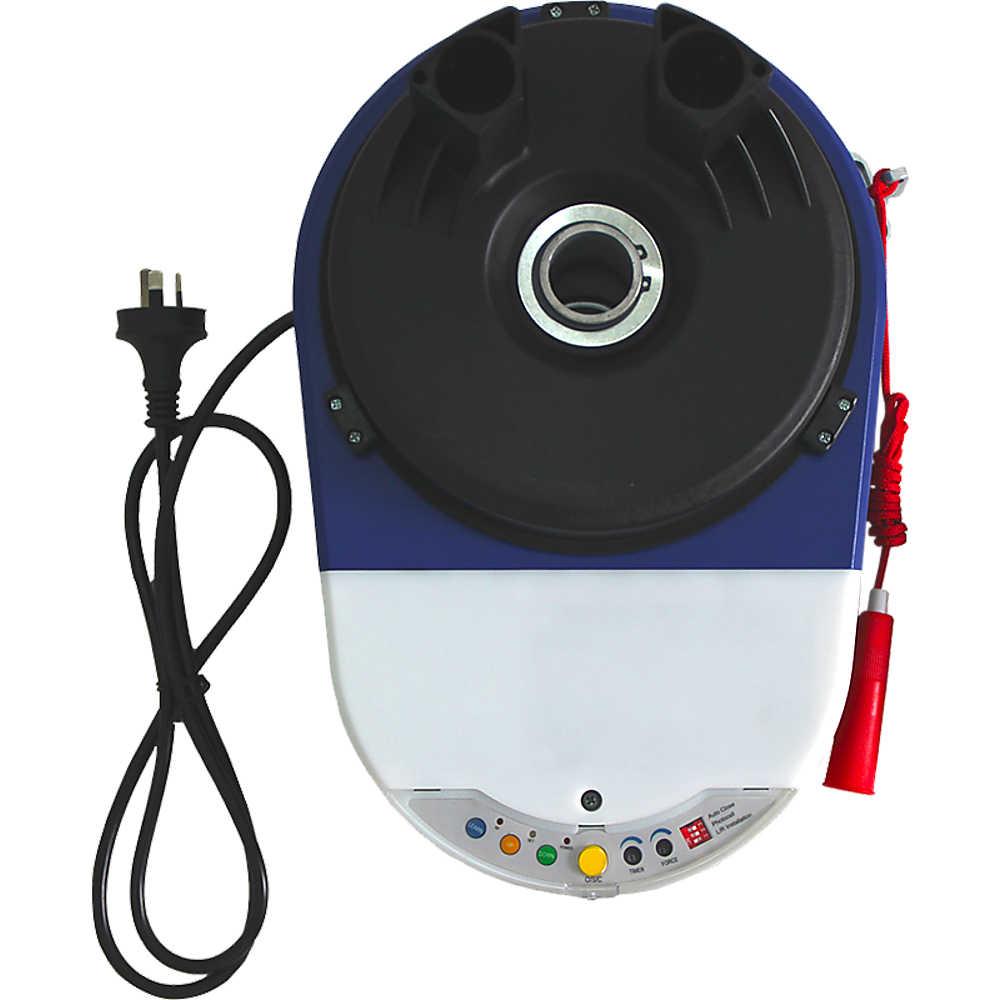

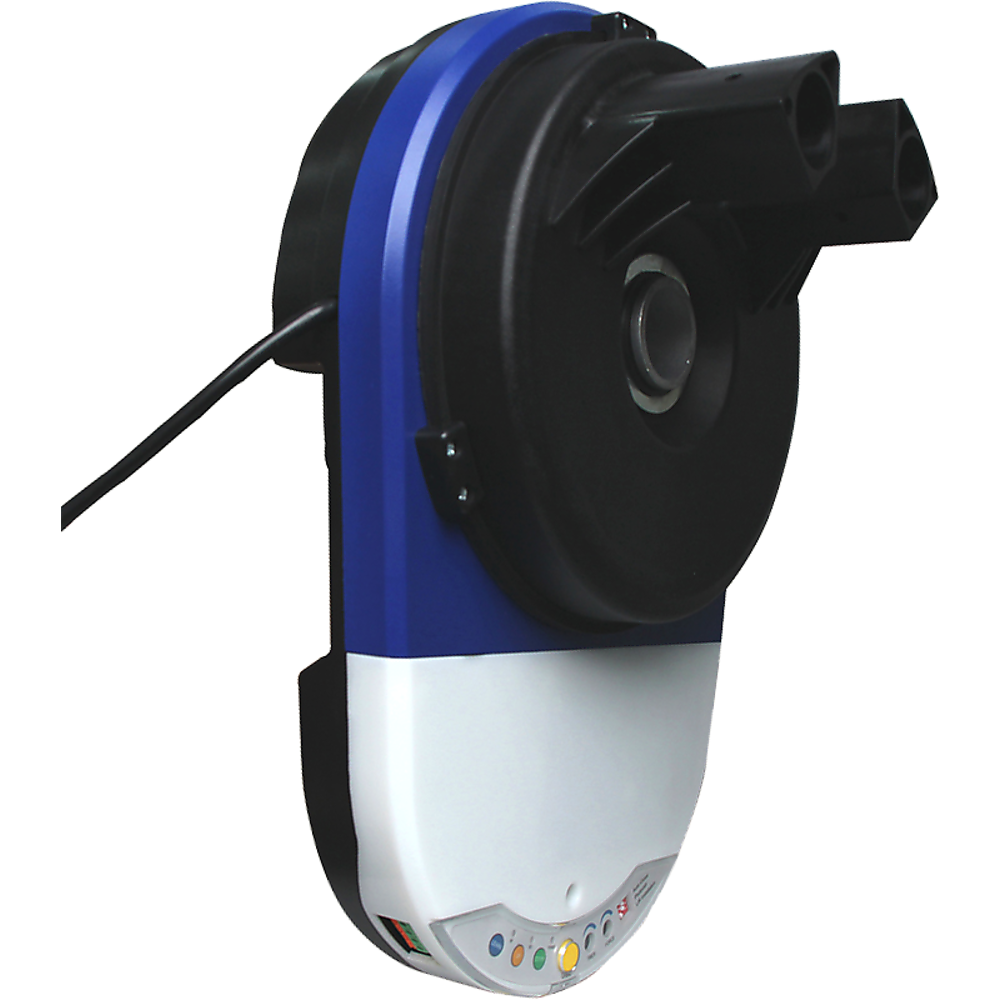

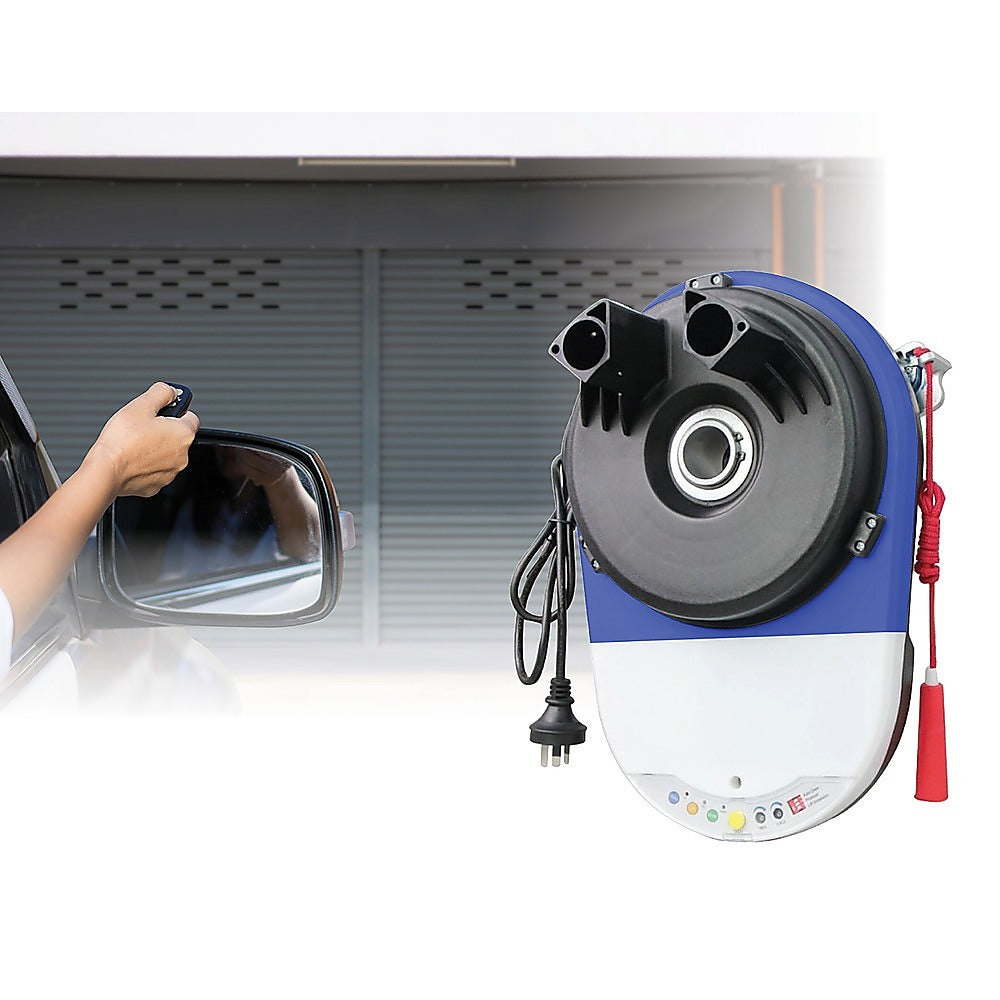

500N Max Automatic Garage Roller Door Opener Motor with Auto Reverse
500N Max Automatic Garage Roller Door Opener Motor with Auto Reverse
This 500N Max Automatic Garage Roller Door Opener Motor (with Auto Reverse / Stop) will easily convert your existing garage door to an automatic one.
This product is water resistant and especially designed for Australian style garage rolling doors.
Features:
- Quiet in operation,secure with rolling
- Slim design requires a minimum side space of 40mm
- Supports door sizes up to 4.5m high with a max door area of 16m² - (up to 80kg Spring Balanced)
- Includes wireless door button + 2 x remote controls (as seen in the pictures)
- Soft Start and Soft Stop
- SMT PCB control system
- Over current protection
- Auto-Reverse / Stop Safety function in case of obstruction
- Built in adjustable auto-close (1-99 seconds)
- Built in Max. Motor running time for multiple safety protection (45 seconds)
- Double disengage device for easy manual and auto operation
- Removable drum fork
- Rolling code remote control

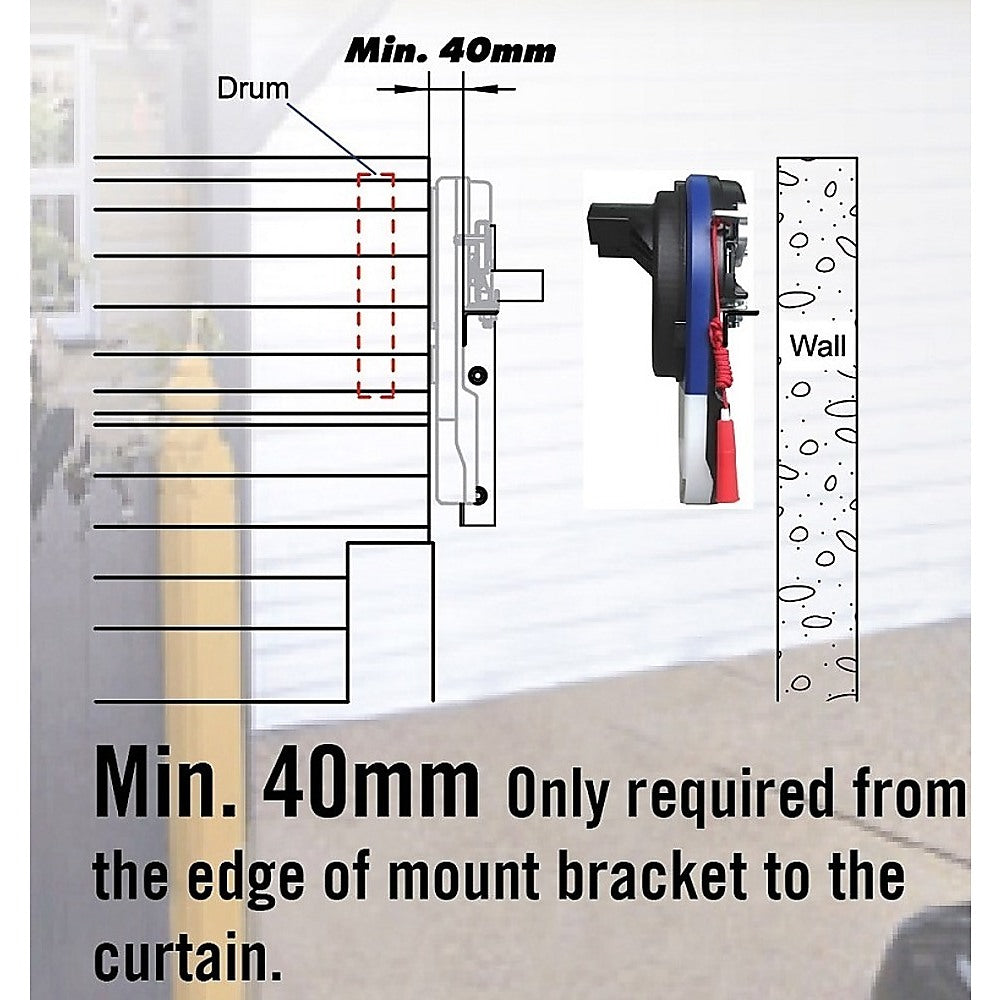

- Distance between curtain and bracket: Min 40mm
Specifications:
- 230V, 50Hz
- Power: 120V A
- Lift Force Max: 500N
- Protection Grade: IP53
- Max Door Height: 4.5m
- Max Door Area: 16m
- Built-in Max Running Time: 45 seconds
- Max Travel: 5 turns of drum
- Auto close time: adjustable from 1-99 seconds
- Weight: 5kg
Model Code: HUH-AP
PLEASE NOTE:
- Only the roller door mechanism and associated remotes & wireless door button included. Actual garage door is NOT included.
- Assembly must be done by a licensed Electrician.
