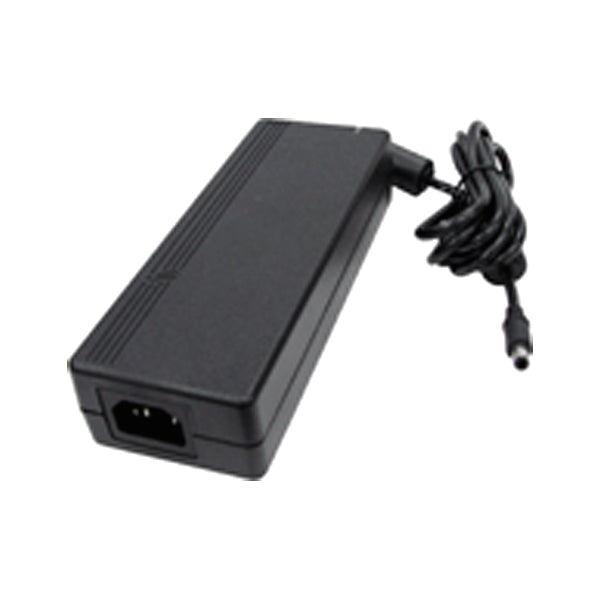

Seasonic Wall Mount Switching Adapter (SSA-1201-24)
Seasonic Wall Mount Switching Adapter (SSA-1201-24)
Couldn't load pickup availability
Features:
Universal input
Japanese Capacitor
High efficiency 87%
Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
Over voltage protection
Over current protection
Short circuit protection
Over Thermal protection
No load consumption 0.5W
Output Specifications:
|
Model |
Output power |
Min. Load |
Max. Load |
Total power |
Efficiency |
|
SSA-1201-24 |
24V |
0A |
5 |
120W |
87% |
Dimension:
L174 W65 H37 mm (L6.85 W2.56 H1.46 inch)
General Specifications:
Input voltage range: 90~264 Vac
Input frequency: 47~63 Hz
Input current: 2A (rms)
Efficiency: 87% Average
Leakage current: 3.5mAa max.
Safety:
|
Safety |
EMI/EMC |
|||||||||||||||
|
CEC |
CB |
CUL |
UL |
CCC |
DEMKO |
FIMKO |
NEMKO |
SEMKO |
TUV |
cTUVus |
VDE |
PSE |
BSMI |
C-tick |
CE |
FCC |
|
V |
V |
V |
|
V |
|
|
|
|
V |
|
|
V |
V |
V |
V |
V |
(V = certificate ready ; P = certificate pending; V * = not apply to all models )
Package contents:
1x Seasonic Wall Mount Switching Adapter (SSA-1201-24)
